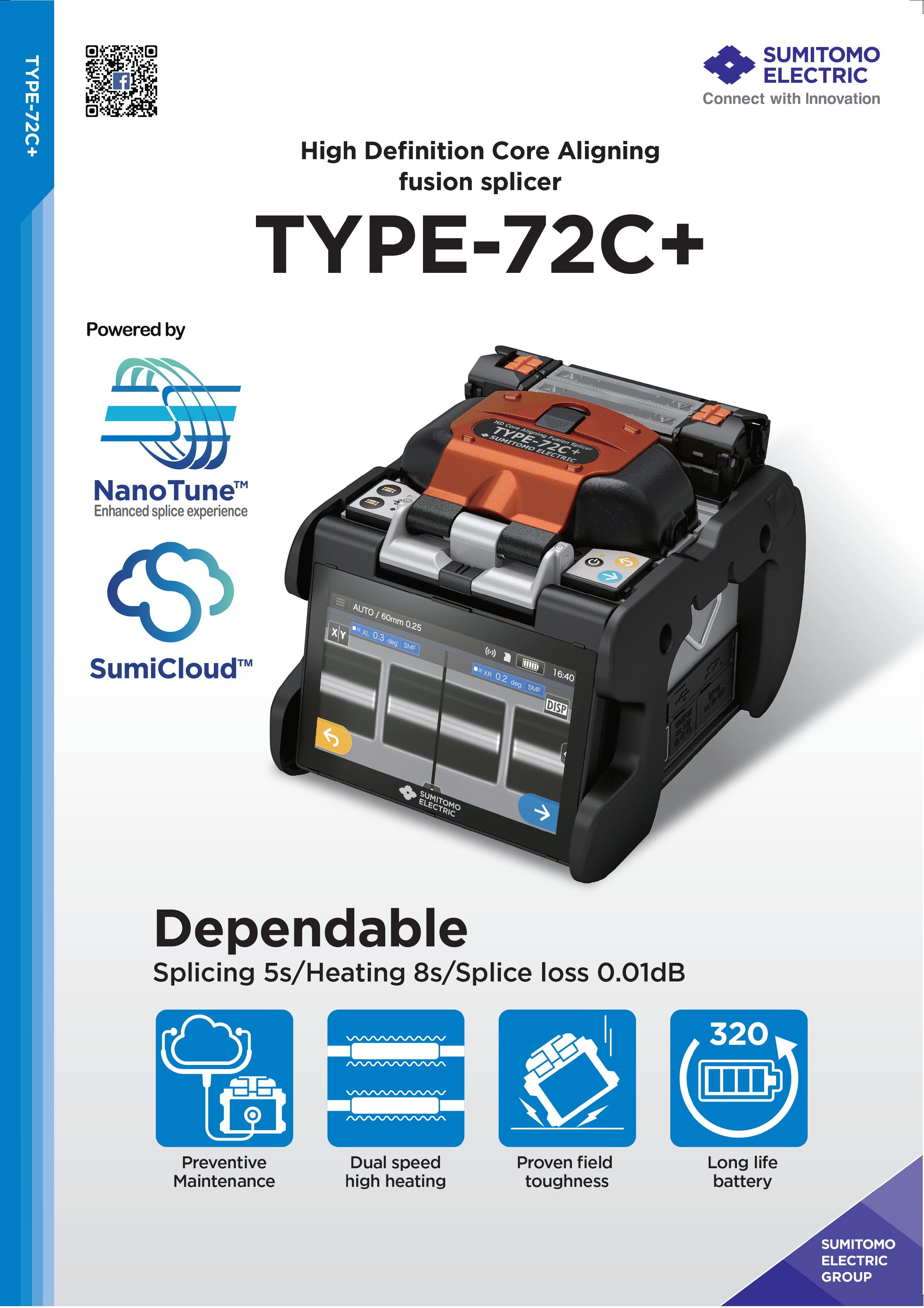

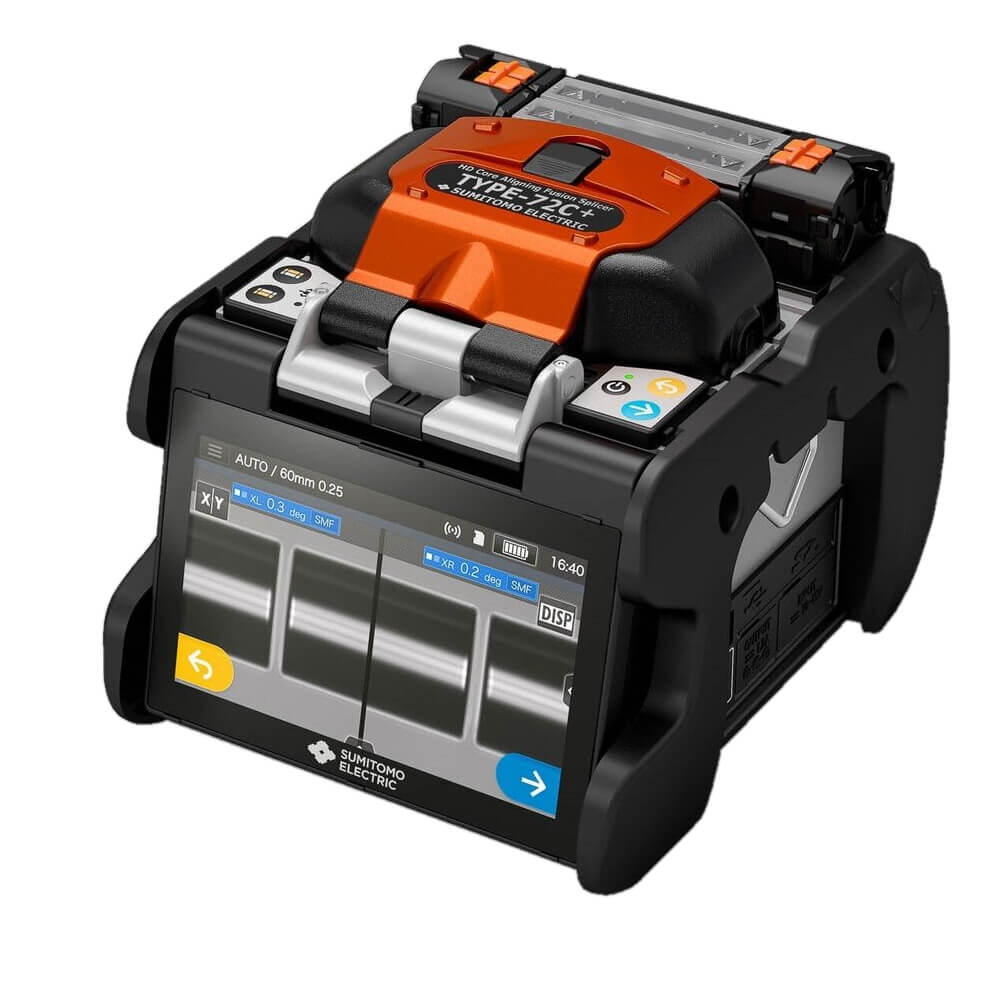

Sumitomo Electric TYPE-72C+ High-Precision Fusion Splicer with Dual Ovens, Touchscreen, Automatic Fiber ID, and SumiCloud Connectivity

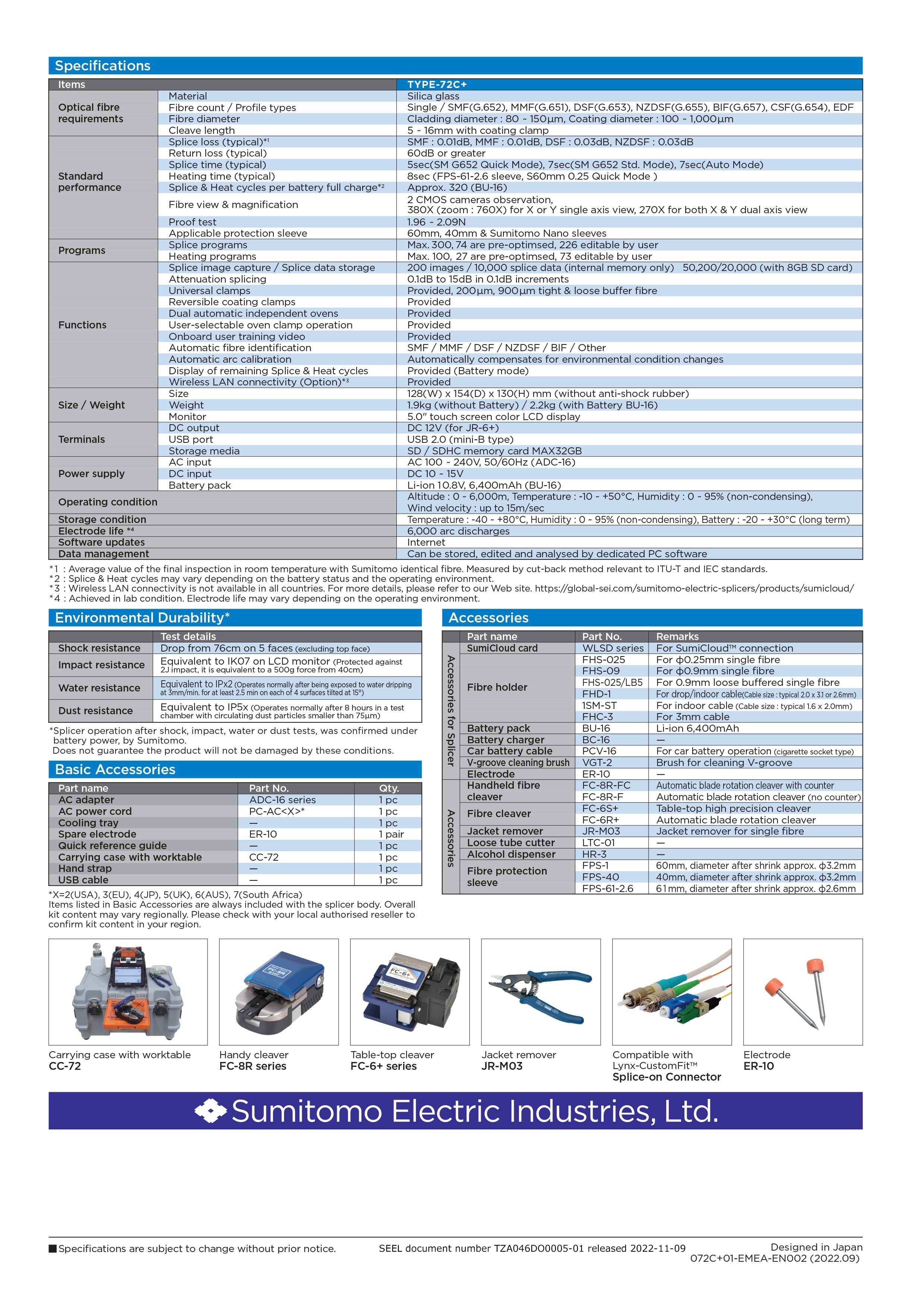

Specifications

• Model: TYPE-72C+
• Material: Silica glass
• Fibre Types: Single/SMF(G.652), MMF(G.651), DSF(G.653), NZDSF(G.655), BIF(G.657), CSF(G.654), EDF
• Fibre Diameter: Cladding: 80-150μm, Coating: 100-1,000μm
• Cleave Length: 5-16mm
• Splice Loss (Typical): SMF: 0.01dB, MMF: 0.01dB, DSF/NZDSF: 0.03dB
• Return Loss: 60dB or greater
• Splice Time: 5-7 seconds (SM G652 Quick/Std./Auto Mode)
• Heating Time: Approx. 8 seconds (FPS-61-2.6 sleeve)
• Battery Life: Approx. 320 cycles (BU-16 battery)
• Magnification: 380X single axis, 270X dual axis view
• Proof Test: 1.96–2.09N
• Protection Sleeves: 60mm, 40mm, Sumitomo Nano sleeves
• Splice Programs: Max. 300 (74 pre-optimized)
• Heating Programs: Max. 100 (27 pre-optimized)
• Storage: 200 images, 10,000 splice data (expandable with SD card)
• Attenuation Splicing: 0.1dB to 15dB adjustable
• Special Features: Dual Automatic Ovens, Universal/Reversible Clamps, Automatic Arc Calibration, Wireless LAN Connectivity (optional)

Size & Weight

• Size: 128(W) x 154(D) x 130(H) mm (without anti-shock rubber)
• Weight: 1.9kg (without battery) / 2.2kg (with battery)

Display & Ports

• Monitor: 5.0″ Color Touchscreen LCD
• DC Output: 12V (for JR-6+)
• USB Port: USB 2.0 (Mini-B type)
• Storage: Supports SD/SDHC memory cards up to 32GB

Power Supply

• AC Input: 100–240V, 50/60Hz
• DC Input: 10–15V
• Battery: Li-ion 10.8V, 6,400mAh (BU-16)

Environmental Conditions

• Operating Temperature: -10°C to +50°C
• Storage Temperature: -40°C to +80°C
• Humidity: 0–95% (non-condensing)
• Altitude: 0–6,000m

Durability

• Shock Resistance: Drop from 76cm on 5 faces
• Impact Resistance: Equivalent to IK07
• Water Resistance: Equivalent to IPX2
• Dust Resistance: Equivalent to IP5X

Included Accessories

• AC Adapter (ADC-16 series)
• AC Power Cord
• Cooling Tray
• Spare Electrodes (ER-10)
• Carrying Case with Worktable (CC-72)
• Hand Strap
• USB Cable
• Quick Reference Guide

Optional Accessories

• SumiCloud Card (WLSD series)
• Battery Charger (BC-16)
• Car Battery Cable (PCV-16)
• Handheld Fibre Cleaver (FC-8R series)
• High Precision Tabletop Cleaver (FC-6+ series)
• Automatic Blade Rotation Cleavers (FC-8R-FC / FC-8R-F)
• V-Groove Cleaning Brush (VGT-2)
• Various Fibre Holders (FHS Series)
• Alcohol Dispenser (HR-3)
• Protection Sleeves (FPS-1, FPS-40, FPS-61-2.6)
