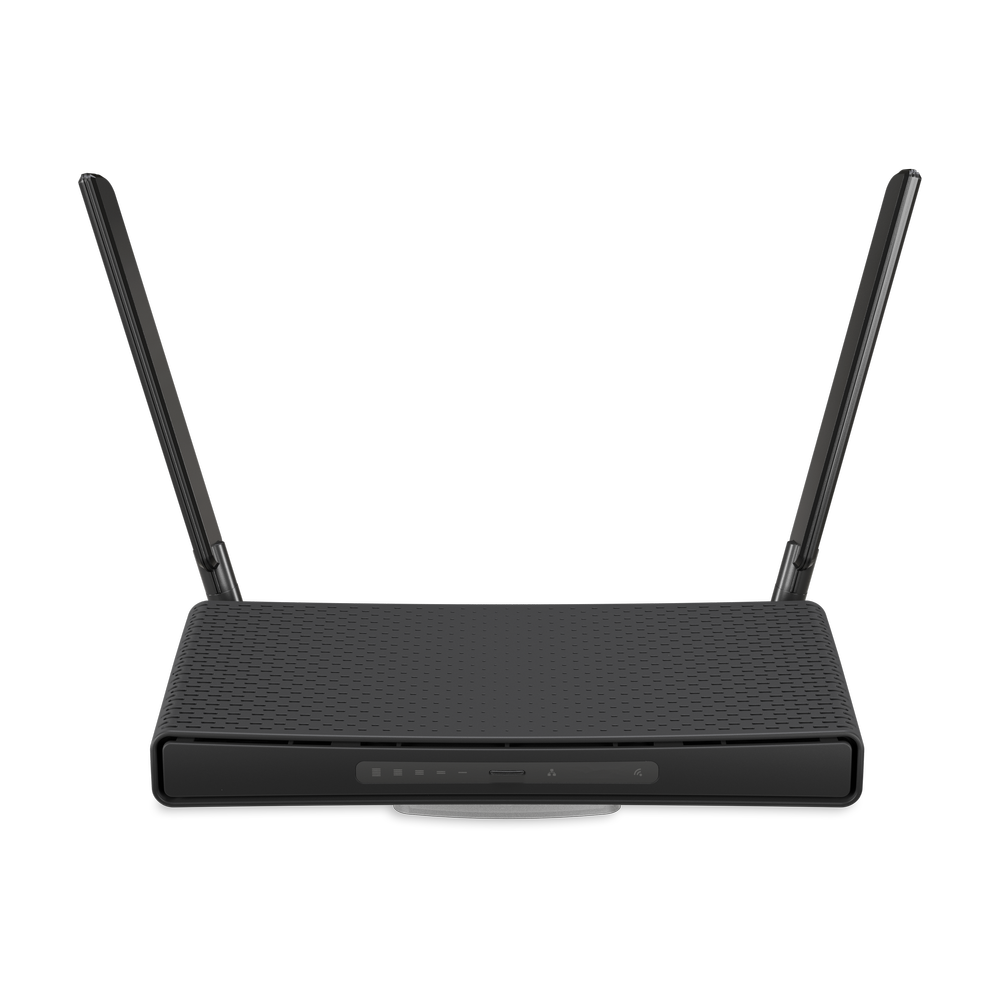

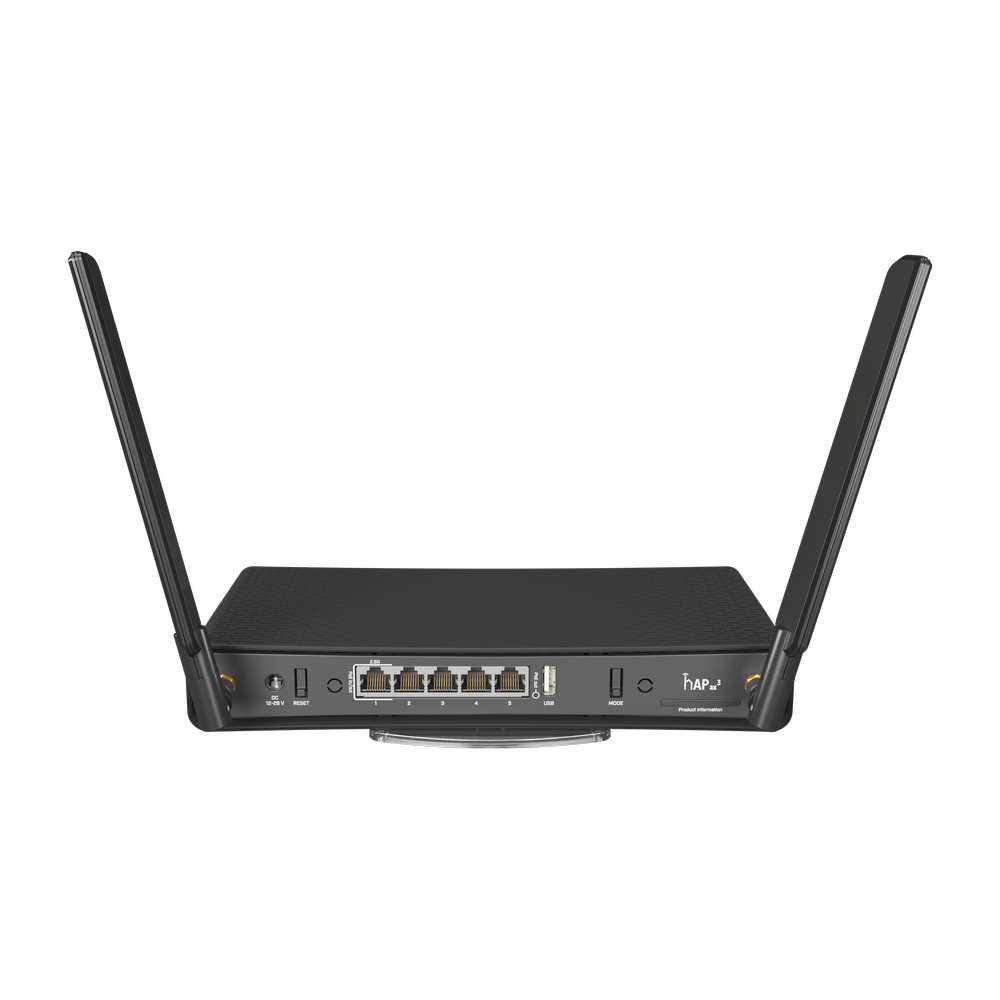

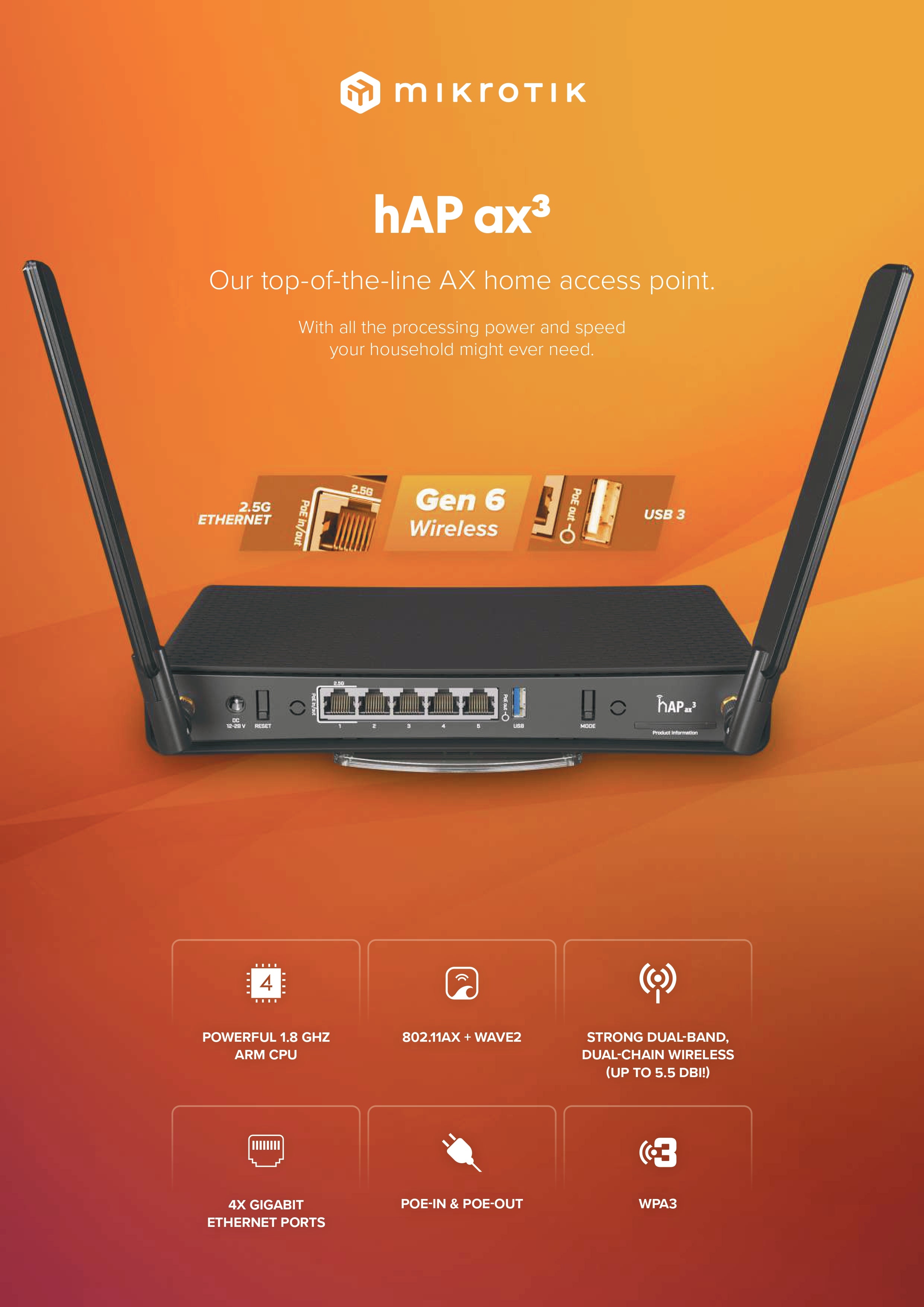

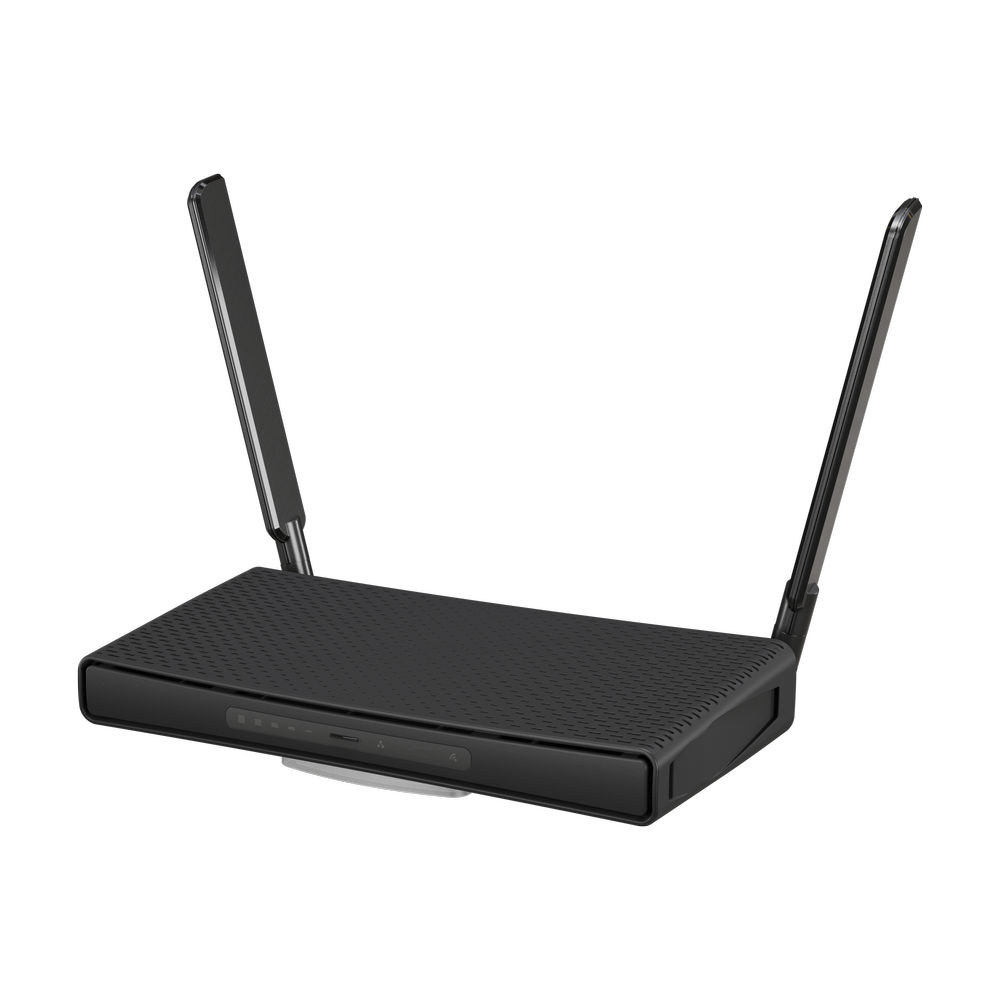

MikroTik hAP ax³ Gen 6 AX Home Access Point, Quad-Core 1.8GHz, 2.5G Ethernet, PoE, USB 3.0, WPA3, Dual-Band Wi-Fi 6

hAP ax³

Our top-of-the-line AX home access point.
With all the processing power and speed your household might ever need.

• POWERFUL 1.8 GHZ
  ARM CPU
• 4X GIGABIT
  ETHERNET PORTS
• hAP ax³
  802.11AX + WAVE2
• POE-IN & POE-OUT
• STRONG DUAL-BAND,
  DUAL-CHAIN WIRELESS
  (UP TO 5.5 DBI!)
• WPA3

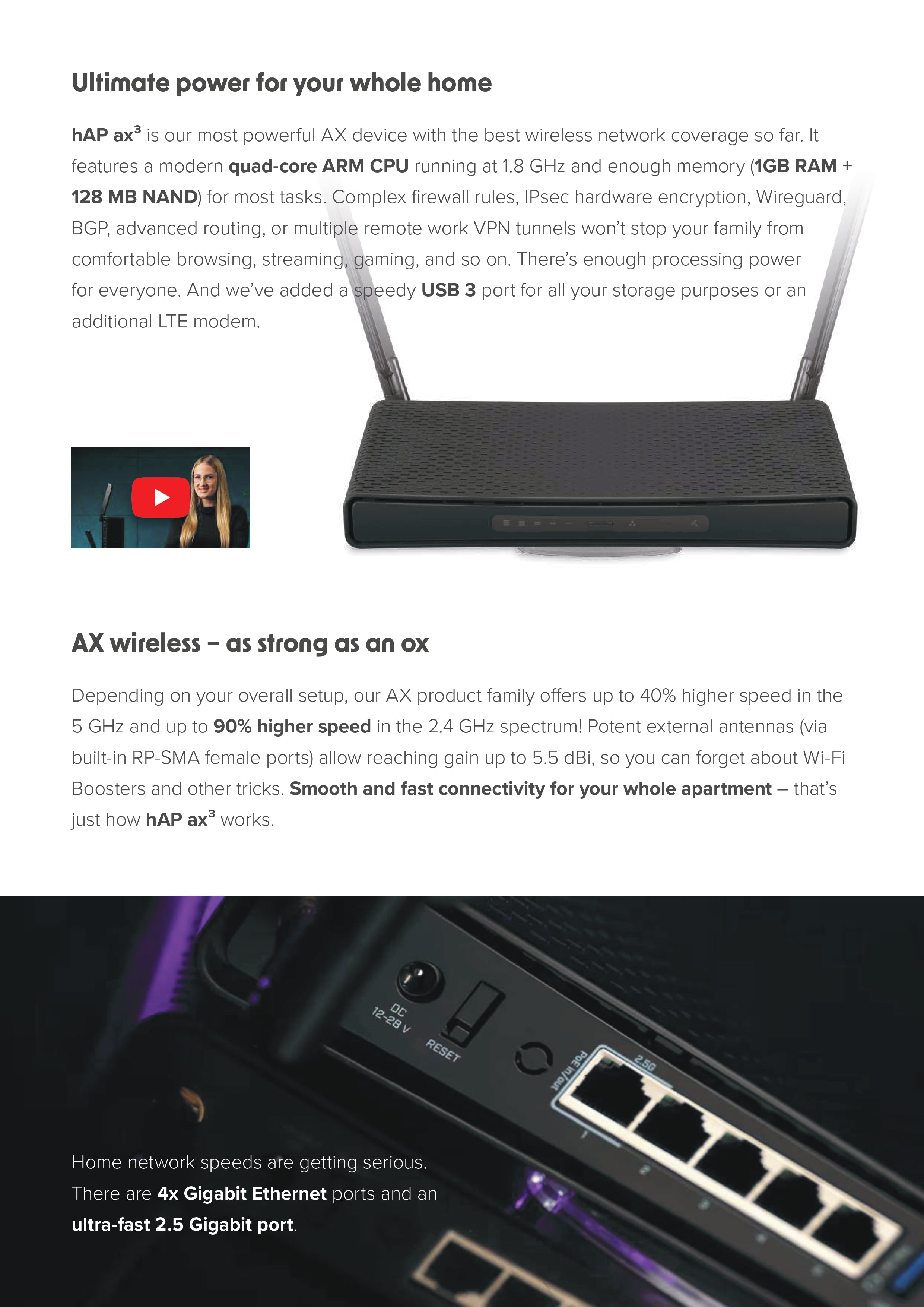

Ultimate power for your whole home

hAP ax³ is our most powerful AX device with the best wireless network coverage so far. It features a modern quad-core ARM CPU running at 1.8 GHz and enough memory (1GB RAM + 128 MB NAND) for most tasks. Complex firewall rules, IPsec hardware encryption, Wireguard, BGP, advanced routing, or multiple remote work VPN tunnels won’t stop your family from comfortable browsing, streaming, gaming, and so on. There’s enough processing power for everyone. And we’ve added a speedy USB 3 port for all your storage purposes or an additional LTE modem.

AX wireless – as strong as an ox

Depending on your overall setup, our AX product family offers up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum! Potent external antennas (via built-in RP-SMA female ports) allow reaching gain up to 5.5 dBi, so you can forget about Wi-Fi Boosters and other tricks. Smooth and fast connectivity for your whole apartment – that’s just how hAP ax³ works.

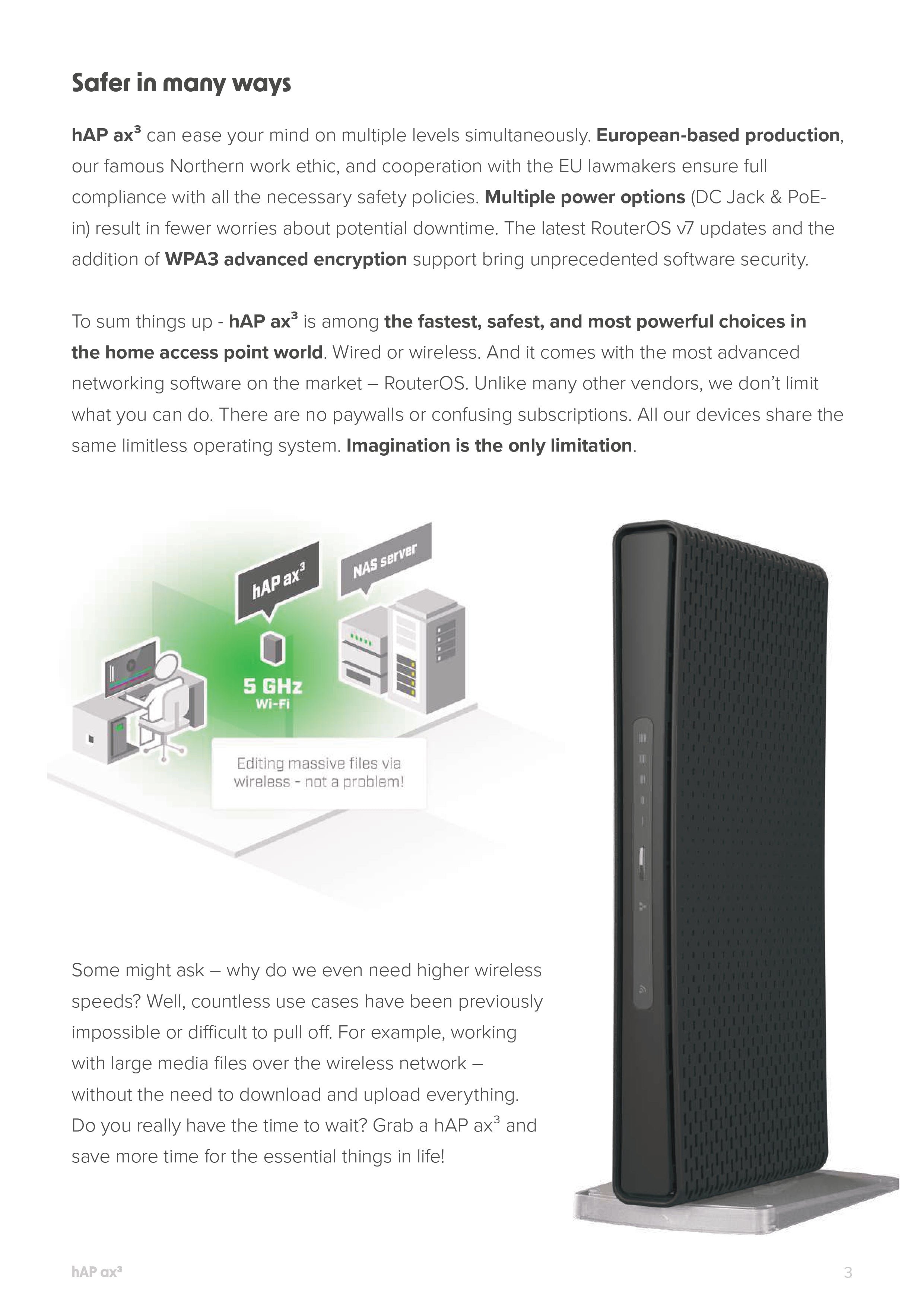

Safer in many ways

hAP ax³ can ease your mind on multiple levels simultaneously. European-based production, our famous Northern work ethic, and cooperation with the EU lawmakers ensure full compliance with all the necessary safety policies. Multiple power options (DC Jack & PoE in) result in fewer worries about potential downtime. The latest RouterOS v7 updates and the addition of WPA3 advanced encryption support bring unprecedented software security.

To sum things up – hAP ax³ is among the fastest, safest, and most powerful choices in the home access point world. Wired or wireless. And it comes with the most advanced networking software on the market – RouterOS. Unlike many other vendors, we don’t limit what you can do. There are no paywalls or confusing subscriptions. All our devices share the same limitless operating system. Imagination is the only limitation.

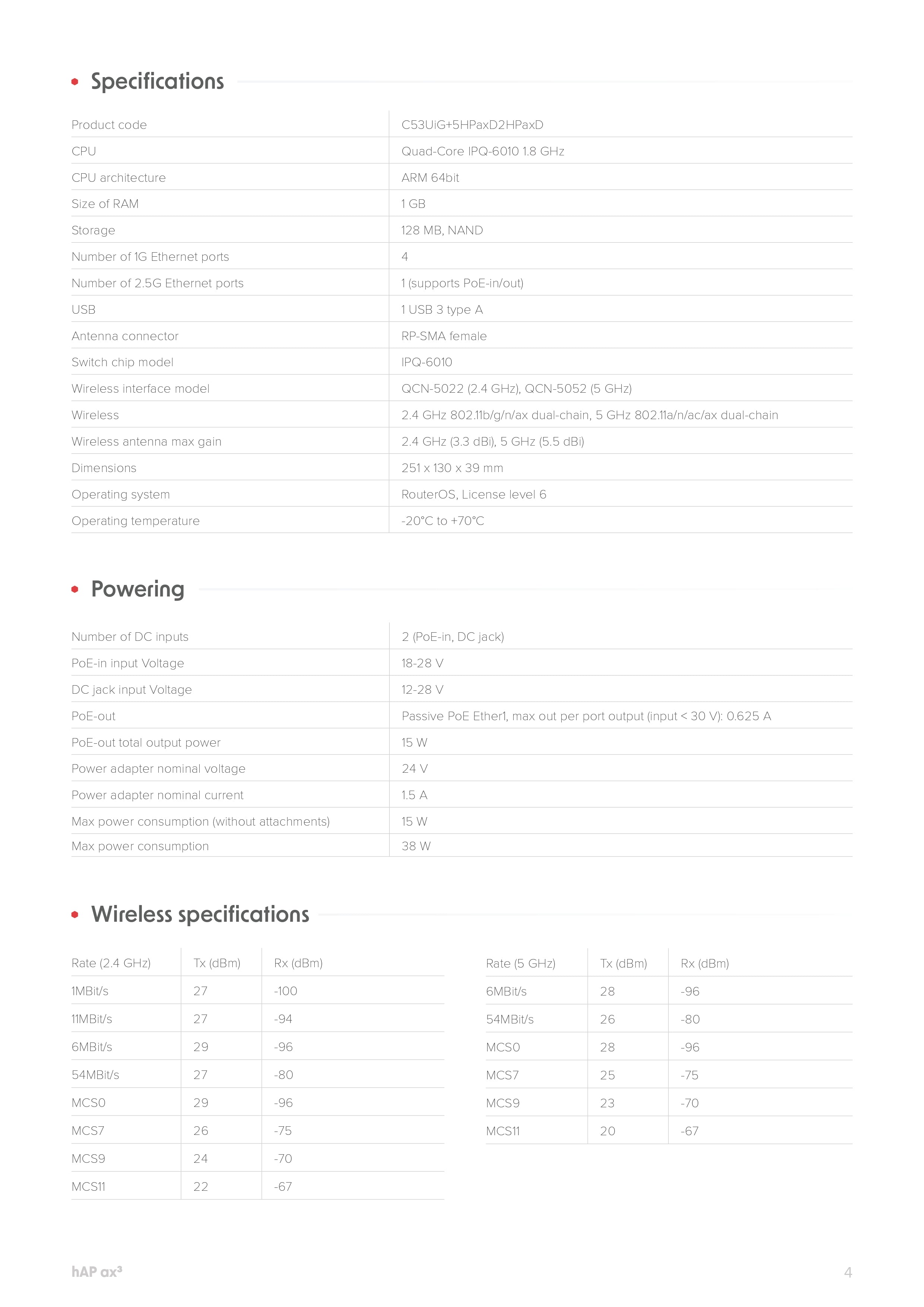

Specifications

• Product code: C53UiG+5HPaxD2HPaxD
• CPU: Quad-Core IPQ-6010 1.8 GHz (ARM 64bit)
• RAM: 1 GB
• Storage: 128 MB NAND
• Ethernet ports: 4 x 1G, 1 x 2.5G (PoE-in/out)
• USB: 1 x USB 3.0 Type-A
• Antenna connectors: RP-SMA female
• Wireless: 2.4 GHz (802.11b/g/n/ax), 5 GHz (802.11a/n/ac/ax)
• Antenna gain: 2.4 GHz: 3.3 dBi, 5 GHz: 5.5 dBi
• Dimensions: 251 x 130 x 39 mm
• OS: RouterOS, License level 6
• Temperature: -20°C to +70°C
• Power input: 18–28 V (PoE-in), 12–28 V (DC jack)
• PoE-out: Passive PoE, max 15 W total
• Max power consumption: 38 W

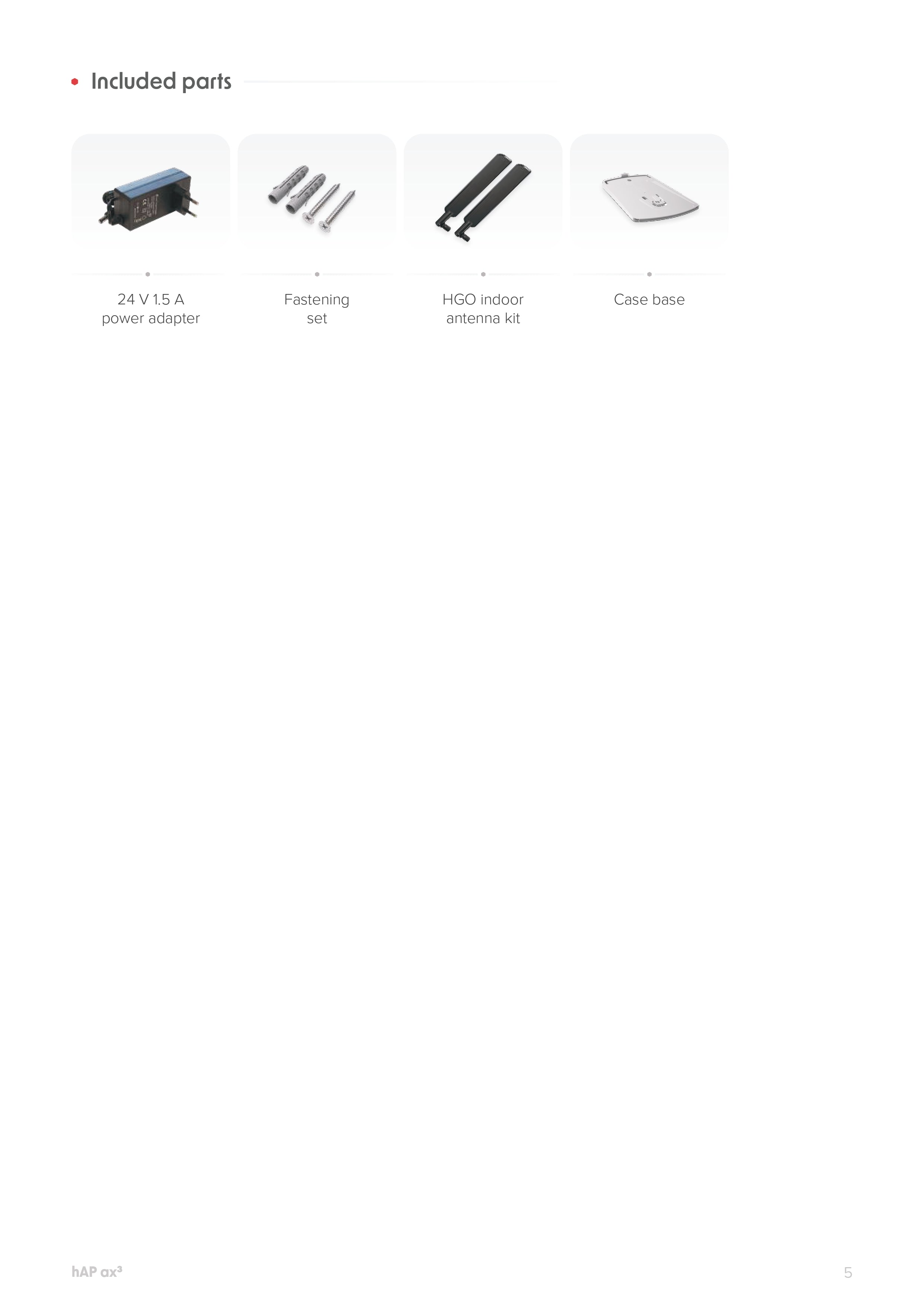

Included parts

• 24 V 1.5 A power adapter
• Fastening set
• HGO indoor antenna kit
• Case base
